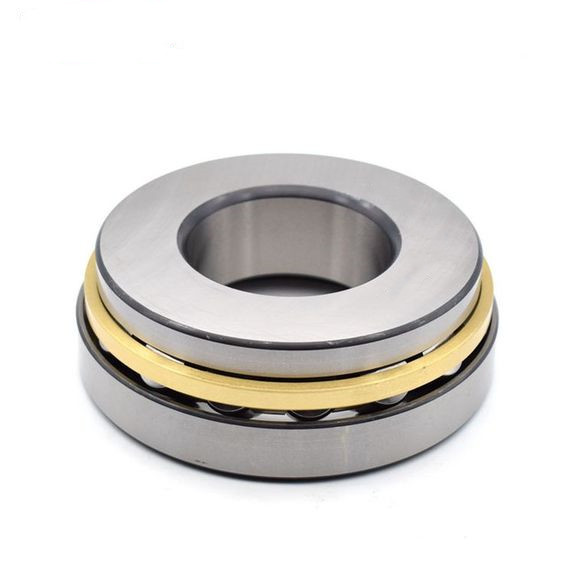

HZK Thrust Roller Bearings are designed for practicality and durability. Their rollers are typically cylindrical or conical, which helps distribute loads and reduce contact stresses. Cages secure the rollers, preventing them from colliding or shifting during operation. Washers guide the rollers' movement and help the bearings accommodate axial loads. The material selection for these components is also crucial; common materials include high-carbon chromium bearing steel, which offers high hardness and wear resistance, extending the bearing's service life.
HZK Thrust Roller Bearings structure and design of thrust roller bearings focus on practicality and durability. They are composed of rollers, cages, washers and other components. High carbon chromium bearing steel is selected as the material to improve hardness and wear resistance.
HZK thrust roller bearings are available with either brass EM or steel E retainers. Bearing models include the 29200, 29300, and 29400 series.

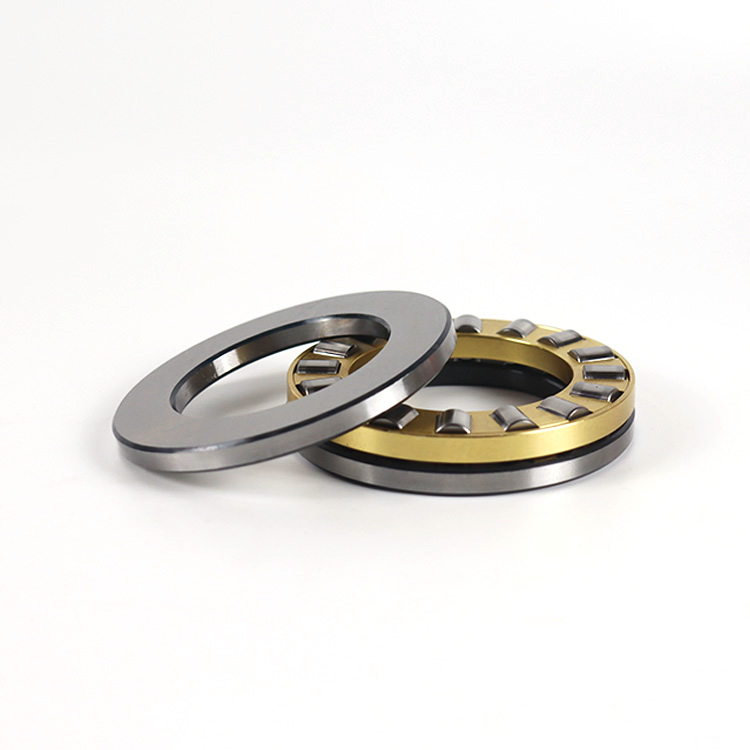

HZK Thrust Cylindrical Roller Bearings are thrust rolling bearings with cylindrical rollers as rolling elements. They are composed of shaft washers, seat washers, thrust cylindrical rollers, and cage assemblies, with the roller and cage assembly being the core components. These bearings are designed to withstand heavy unidirectional axial loads and vibration loads. They do not have self-aligning capabilities and are often combined into high-rigidity bearing configurations. Common models include the 81100 series, 81200 series, 81115, 81215, etc.

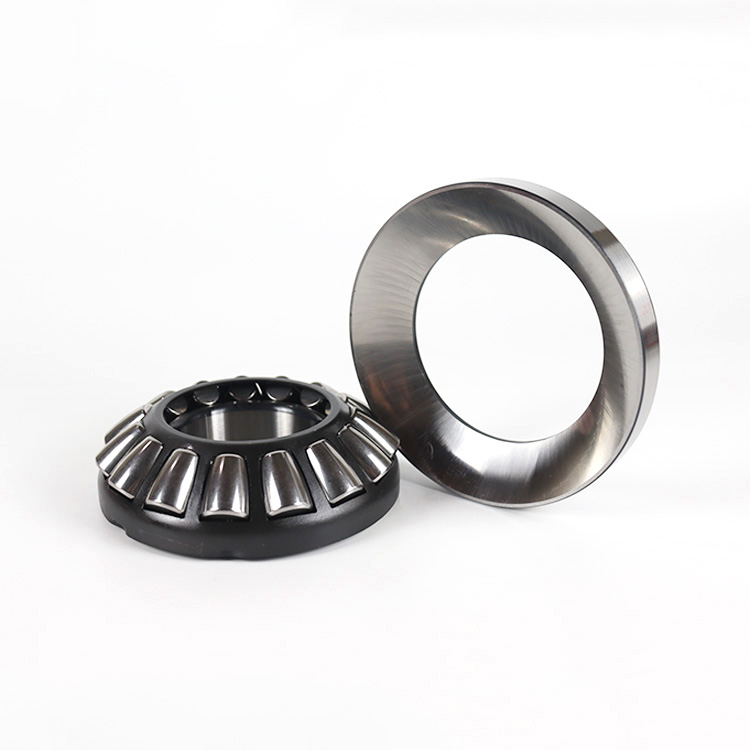

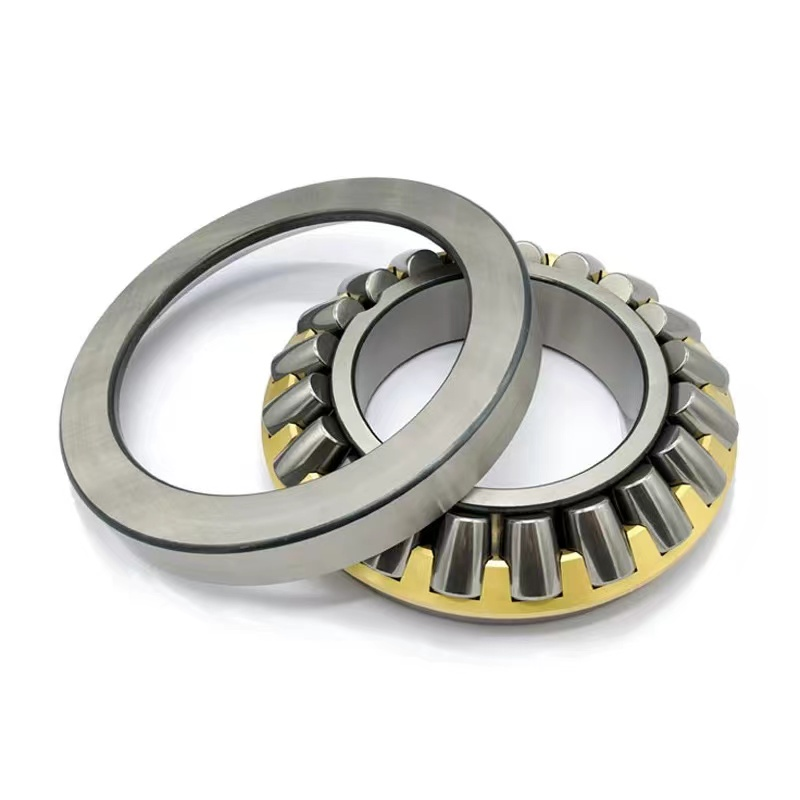

HZK Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers .
