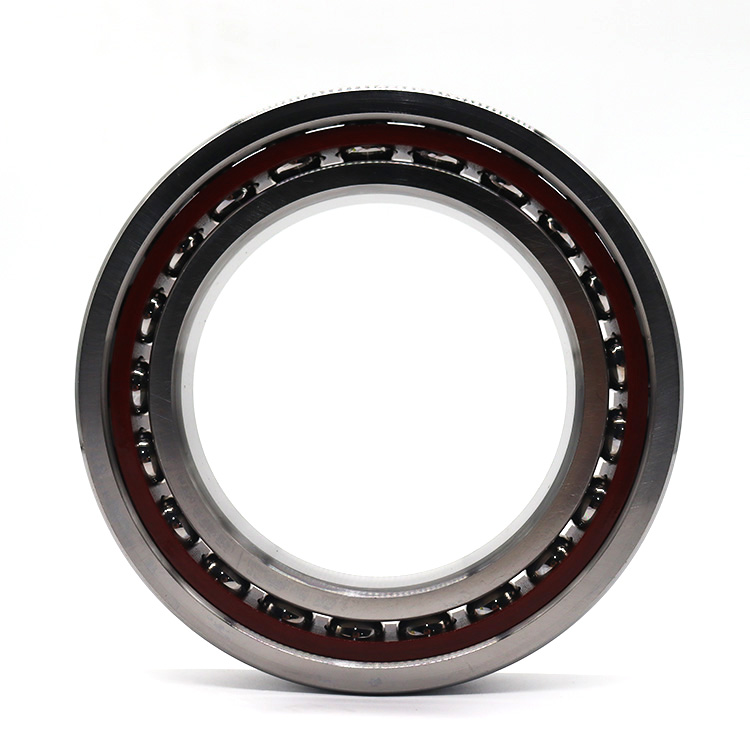

HZK Angular Contact Ball Bearings primarily support large, unidirectional axial loads. The larger the contact angle, the greater the load capacity. Cage materials include steel, brass, or engineering plastics, and molding methods include stamping or turning, depending on the bearing type and operating conditions. Other bearings include combined angular contact ball bearings, double-row angular contact ball bearings, and four-point contact ball bearings.
Because the raceways of the inner and outer rings of angular contact ball bearings can move relative to each other about the horizontal axis, they can simultaneously withstand radial and axial loads—a combined load. (Single-row angular contact ball bearings can only withstand unidirectional axial loads and are therefore typically installed in pairs.) The materials of the cage include brass, synthetic resin, etc., which are differentiated according to the bearing type and usage conditions.
Model number | Basic dimensions(mm) d | Basic dimensions(mm) D | Basic dimensions(mm) B | Rated load (N) Cr | Rated load (N) Cor | Limiting speed (1) (rpm) Grease lubrication | Limiting speed (1) (rpm) oil lubrication | Weight ≈kg |
|---|---|---|---|---|---|---|---|---|
| 7004A | 20 | 42 | 12 | 10800 | 6600 | 18000 | 24000 | 0.068 |
| 7004C | 20 | 42 | 12 | 11100 | 6550 | 26000 | 36000 | 0.076 |
| 7005A | 25 | 47 | 12 | 11300 | 7400 | 16000 | 22000 | 0.079 |
| 7005C | 25 | 47 | 12 | 11700 | 7400 | 22000 | 30000 | 0.089 |
| 7006A | 30 | 55 | 13 | 14500 | 10100 | 13000 | 18000 | 0.116 |
| 7006C | 30 | 55 | 13 | 15100 | 10300 | 19000 | 26000 | 0.134 |
| 7007A | 35 | 62 | 14 | 18300 | 13400 | 12000 | 16000 | 0.153 |
| 7007C | 35 | 62 | 14 | 19100 | 13700 | 17000 | 22000 | 0.173 |
| 7008A | 40 | 68 | 15 | 19500 | 15400 | 10000 | 14000 | 0.19 |
| 7008C | 40 | 68 | 14 | 20600 | 15900 | 15000 | 20000 | 0.212 |
| 7009C | 45 | 75 | 16 | 24400 | 19300 | 14000 | 19000 | 0.269 |
| 7209A | 45 | 85 | 19 | 39500 | 28700 | 8500 | 12000 | 0.411 |
| 7010A | 50 | 80 | 16 | 14500 | 21100 | 8500 | 12000 | 0.263 |
| 7010C | 50 | 80 | 16 | 26000 | 21900 | 12000 | 17000 | 0.293 |
| 7011A | 55 | 90 | 18 | 32500 | 27700 | 7500 | 11000 | 0.391 |
| 7011C | 55 | 90 | 18 | 34000 | 28600 | 11000 | 15000 | 0.43 |
Shandong HZK Bearing Factory, located in Panzhuang Industrial Park, Linqing City, Shandong Province, covers a total building area of over 10,000 square meters. HZK BEARING FACTORY mainly produces and sells spherical roller bearings, cylindrical roller bearings, deep groove ball bearings, tapered roller bearings, thrust self-aligning roller bearings, automotive wheel bearings, and more. The factory is equipped with fully automated workshops, heat treatment equipment, lathes, grinding machines, ultra-precision equipment, and assembly facilities. We utilize industry-leading production equipment and testing instruments, and have multi-story warehouses to fully guarantee bearing quality and delivery speed. HZK BEARING also customizes various non-standard products. We welcome customers to visit our factory for guidance, business negotiations, and mutual development.
faq
Q: What is your delivery time?
A: If the goods are in stock, it generally takes 5-10 days. If the goods are not in stock, it takes 15-20 days depending on the quantity.
Q: How are you packaged?
A: Packaging can be customized according to customer requirements.
Q: Are we a trading company or a manufacturer?
A: We are a manufacturer with our own factory.
Q: I want a specific size or color of goods, can you customize it?
A: We provide rolls and sheets, as well as post-processing services such as logo printing.
