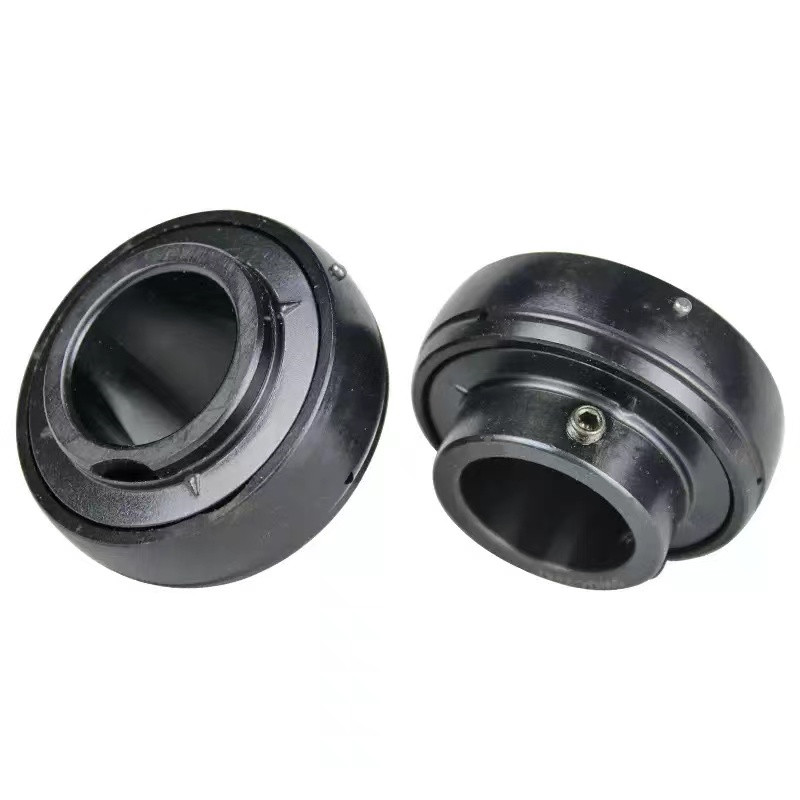

Insert ball bearings with set screws are available in the UC200 series, UC300 series, and their variant, the UB(SB)200 series. If the application environment is less suitable, the UC200 series is generally selected; otherwise, the UC300 series is preferred. Insert ball bearings typically have two set screws, angled 120° apart. Their characteristic is that they use the set screws to secure the shaft when mating. However, the mating environment requires minimal vibration. This type of insert ball bearing is quite common and is widely used in various manufacturing industries, including textile machinery and ceramic machinery.
Insert bearing units are divided into a core and a housing. The core and housing are usually referred to together, such as the UC205 insert bearing with set screws and a housing, called the UCP205. Insert bearing units are highly interchangeable, allowing the core to be freely assembled in housings of the same specification or different shapes.
UCT units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications. These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. Slot spacing and width are interchangeable with competitive units. Housing designed for ease of bearing replacement.

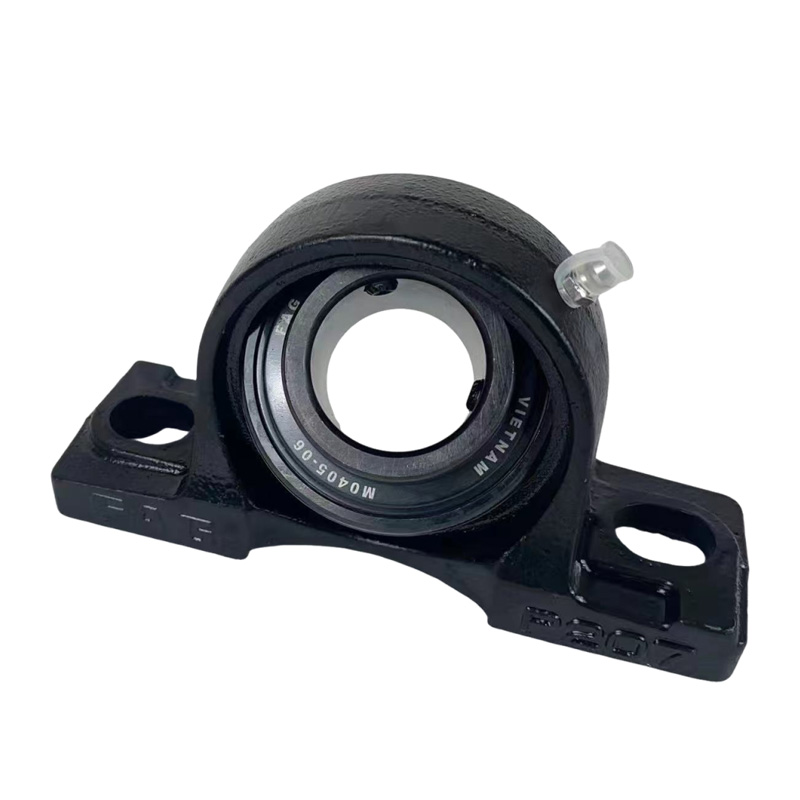

Pillow block bearings, flange bearing units, bearing blocks, and take-up bearings units all consist of a housing with a bearing mounted in it. They are available in a variety of materials, mounting configurations, and various bearing features. Each mounted unit, including a mounted bearing, acts as a system to position the bearing securely for reliable operation.
These bearings are also designed to be self-aligning, easy to install, and feature a dual-structure seal, allowing them to operate in harsh environments. Bearing seats are typically cast. Commonly used seats include vertical seats (P), square seats (F), boss square seats (FS), boss round seats (FC), diamond seats (FL), annular seats (C), and slider seats (T).
